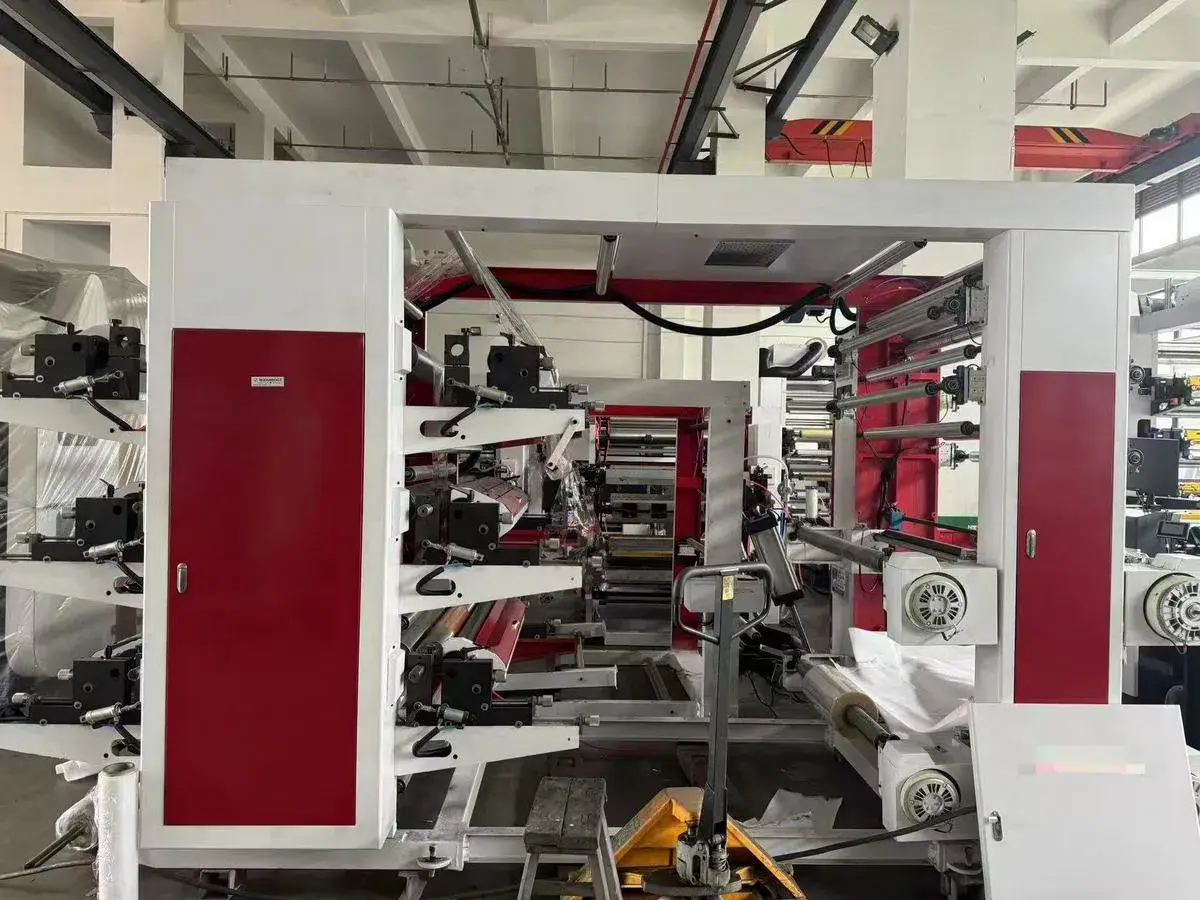

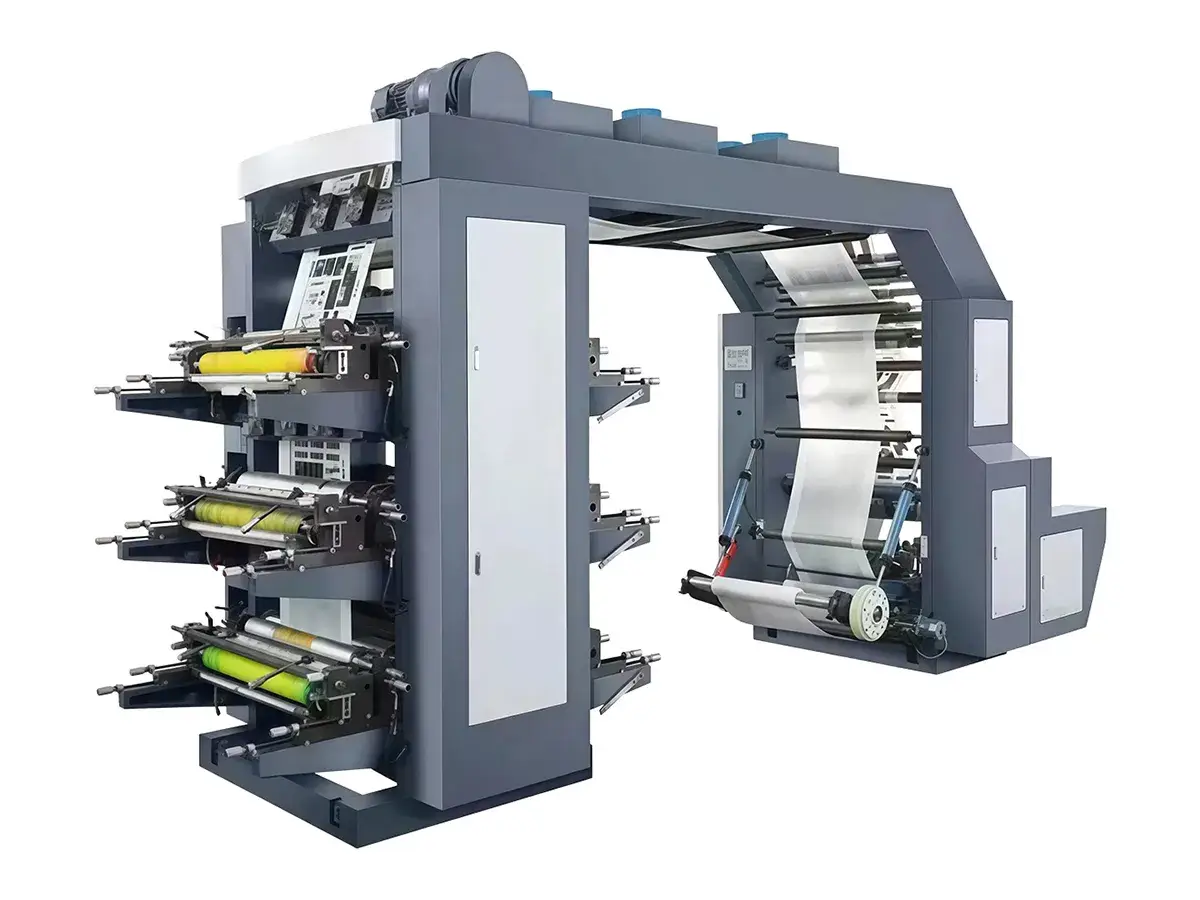

BC-2600/4600/6600 Flexo Printing Machine
The flexo printing machine is a rotary printing system that utilizes photosensitive resin as the printing plate. This flexographic printer transfers liquid ink through anilox rollers onto the raised surface of the plate, which then imprints the graphics onto various substrates such as polyethylene (PE) and polypropylene (PP) plastic bags, cellophane, and roll paper. The plastic bag printing machine is engineered as a complete workflow comprising four core sections: unwinding, printing, drying, and rewinding.
| Model | |
|
|
| Printing Width | 600mm | 600mm | 600mm |
| Printing Length | 180-1200mm | 180-1200mm | 180-990mm |
| Printing Speed | 60m/min | 60m/min | 60m/min |
| Plate Thickness | 2.38mm | 2.38mm | 2.38mm |
| Dimension(L×W×H) | 2300×1600×2200mm | 4800×1600×2400mm | 4800×1600×2800mm |
| Total Weight | 1800kg | 3000kg | 3500kg |
- Automated Production Management
This flexo printing machine is equipped with a meter counter, allowing operators to preset the desired printing quantity. The system features an automatic shutdown function that triggers upon reaching the target count or in the event of material breakage.
- Convenient Operation
To facilitate easy plate mounting and machine adjustment, jog and stop buttons are conveniently located on both the plate cylinder base and the collection rack.
- Precise Registration
The packaging printing equipment features a 360-degree continuously adjustable longitudinal registration device. This ensures that patterns remain accurately positioned and highly consistent throughout the continuous high-speed printing process.
