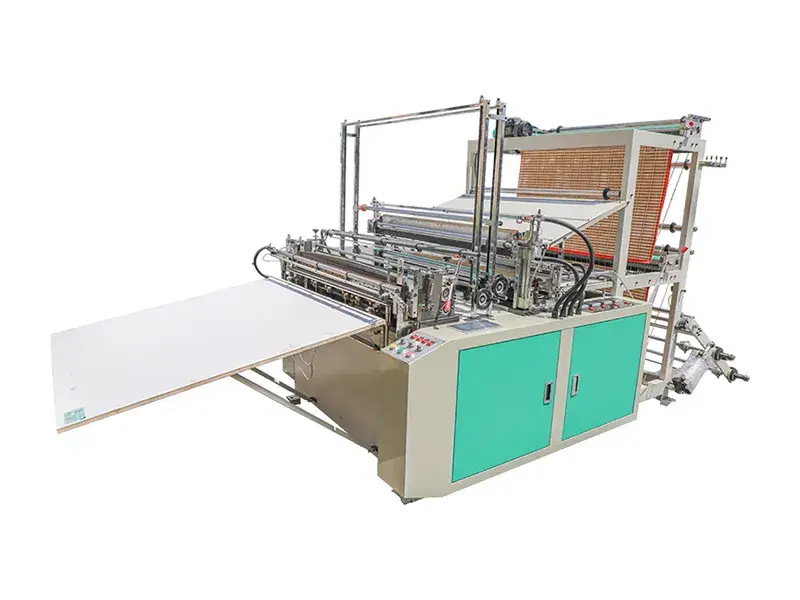

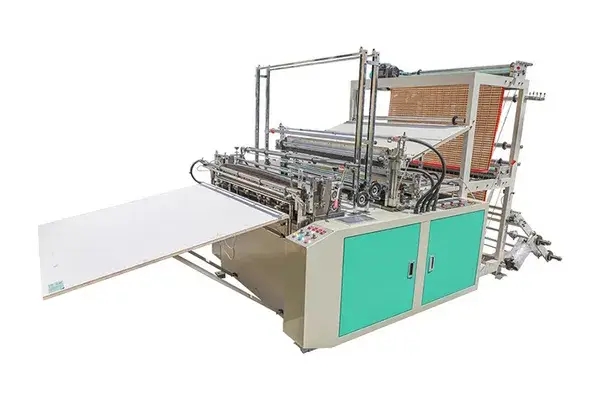

Heat Sealing Cold Cutting Bag Making Machine
The heat sealing cold cutting bag making machine is an automated plastic packaging system that seals film with a thermal knife and separates it using a cold cutting blade. The core advantage of this cold cut bag making machine is the separate execution of sealing and cutting, which creates a neat, open-ended edge. This PE flat bag maker is ideal for producing T-shirt bags, flat pouches, and other plastic packaging that requires a clean, non-fused opening.
| Model | |
|
| Raw Material | LDPE HDPE | LDPE HDPE |
| Output | 60-180 pcs/min | 60-180 pcs/min |
| Bag Width | 100-550mm | 60-750mm |
| Bag Length | 130-550mm | 40-750mm |
| Film Thickness | 0.03-0.15mm | 0.03-0.15mm |
| Total Power | 8kW | 10kW |
| Dimension(L×W×H) | 4000×1200×1600mm | 4000×1500×1600mm |
- Neat Cuts without Deformation
By utilizing a cold-cutting process, this bagger machine avoids physical stretching or shrinkage of the film edges caused by high temperatures, ensuring the bag mouth remains perfectly flat.
- High-Precision Dual Power Options
This automatic plastic bagger offers two configuration plans: stepper motor control or imported servo motor control. Combined with a digital computer length-setting system, it minimizes dimensional errors.
- Auto-Stop for Misalignment
Equipped with an advanced photoelectric tracking system, the flat bag maker will automatically shut down if it detects a missing print mark or material shortage, effectively preventing large-scale raw material waste.
