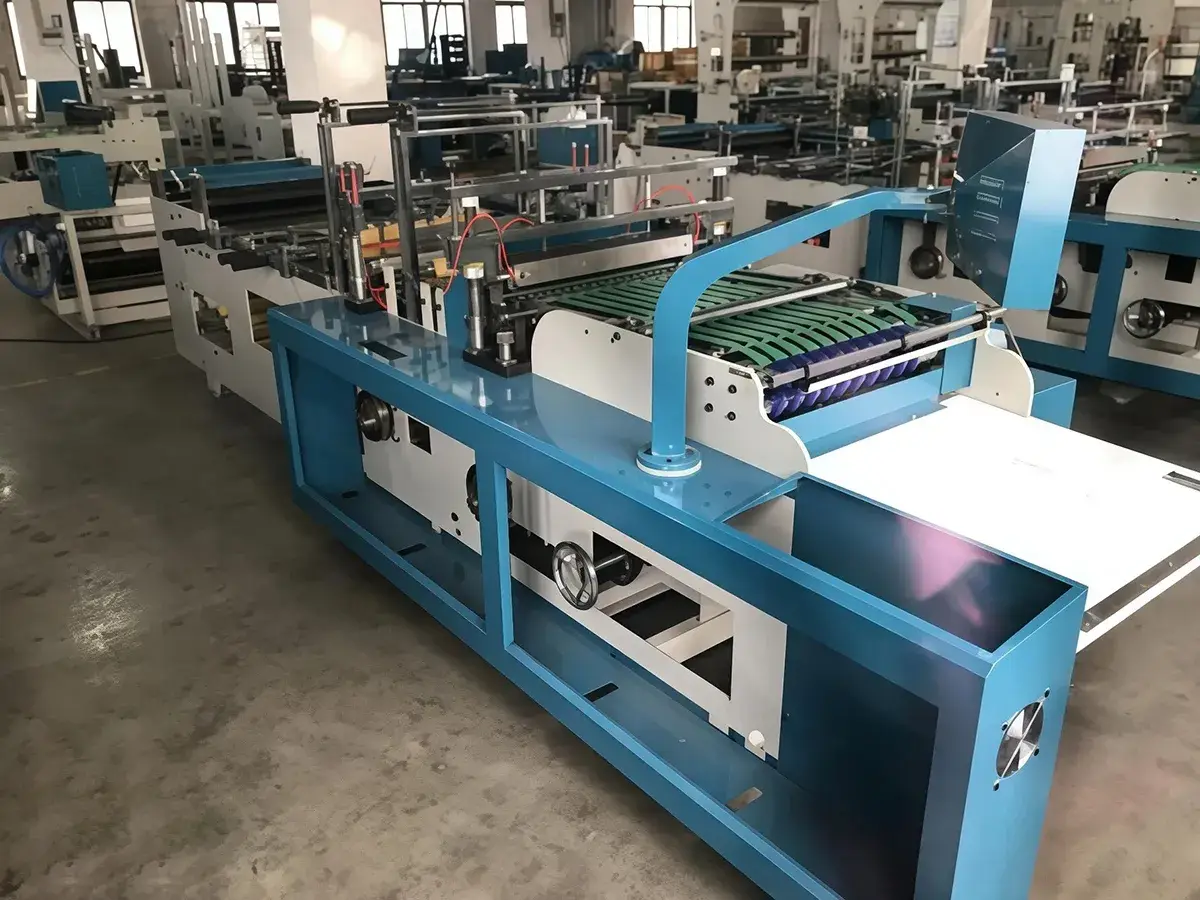

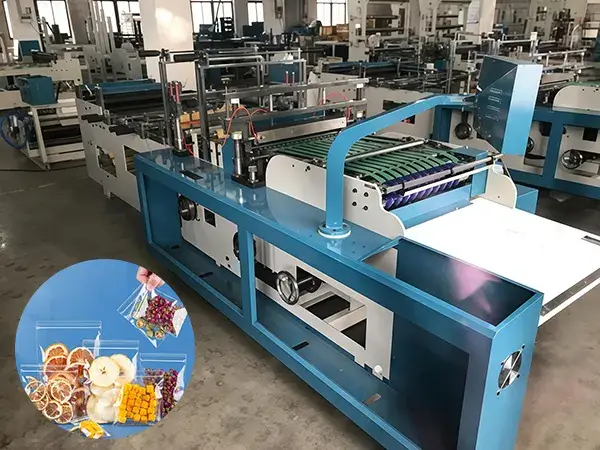

BC-600 Reclosable Polypropylene Bag Making Machine
This reclosable polypropylene bag making machine is designed to produce reclosable bags using PP (polypropylene) film. By utilizing the thermal properties of polypropylene, this ziplock bag maker integrates the unwinding, folding, and heat-sealing processes into a continuous automated workflow. Compared to PE materials, the PP self-sealing bag production line focuses on maintaining the high clarity and stiffness of the film, providing a professional packaging solution for items that require high visibility, such as stationery and retail displays.

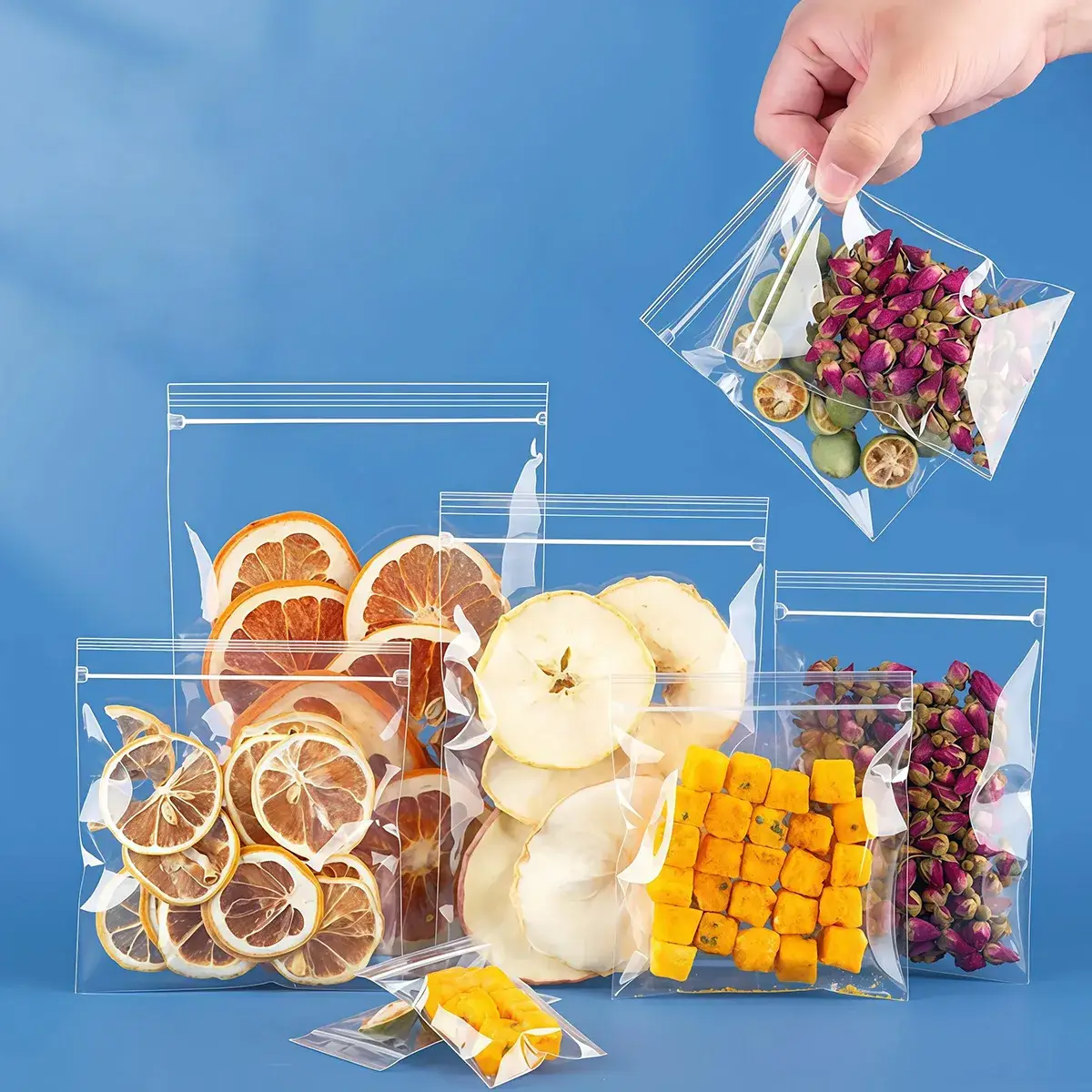

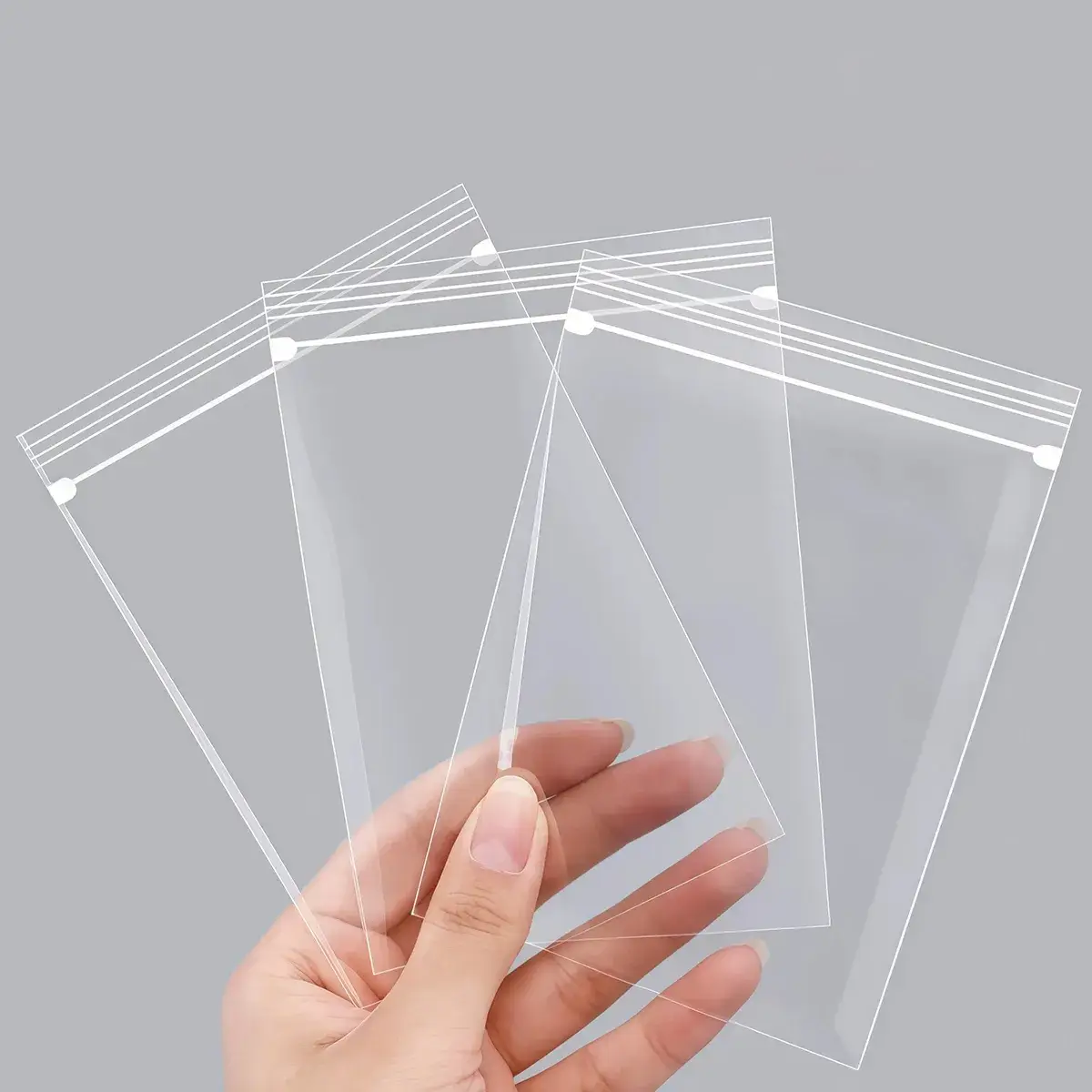

Available Bag Types
Features
- Ultrasonic Technology: This polypropylene bag maker uses high-frequency mechanical vibration to melt material surfaces for instant, firm sealing. It performs sealing and cutting simultaneously, ensuring smooth edges without charring, cracking, or burrs.
- Precision Control: Controlled by a Delta servo system, this PP self-sealing bag equipment maintains high stability and output while reducing the error rate.
- Automatic Warning Protection: The reclosable bag equipment includes an automatic sensing and shutdown function for scenarios such as insufficient temperature, material shortage, or misalignment of printing points.
Technical Specifications
| Model | |
|
| Raw Material | PP-PE | PP-PE |
| Speed | 60-120 pcs/min | 40-80 pcs/min |
| Bag Width | 100-400mm | 100-600mm |
| Bag Length | 100-450mm | 100-650mm |
| Film Thickness | 0.04-0.15mm | 0.04-0.15mm |
| Servo Motor Power | 1.5kW | 2kW |
| Main Motor Power | 1.5kW | 1.5kW |
| Heating Power | 3kW | 3.8kW |
| Discharging Motor Power | 0.75kW | 0.75kW |
| Ultrasonic Power | 2kW | 2kW |
| Feeding Motor Power | 0.75kW | 0.75kW |
| Film-fold Motor Power | 0.55kW | 0.55kW |
| Cooling Power | 0.55kW，0.25kW | 0.55kW,0.25kW |
| Total Power | 15kW | 18kW |
| Dimension (L×W×H) | 6000*1500*1500mm | 6000*1650*1500mm |
| Voltage | 50HZ, 380V | 50HZ, 380V |
