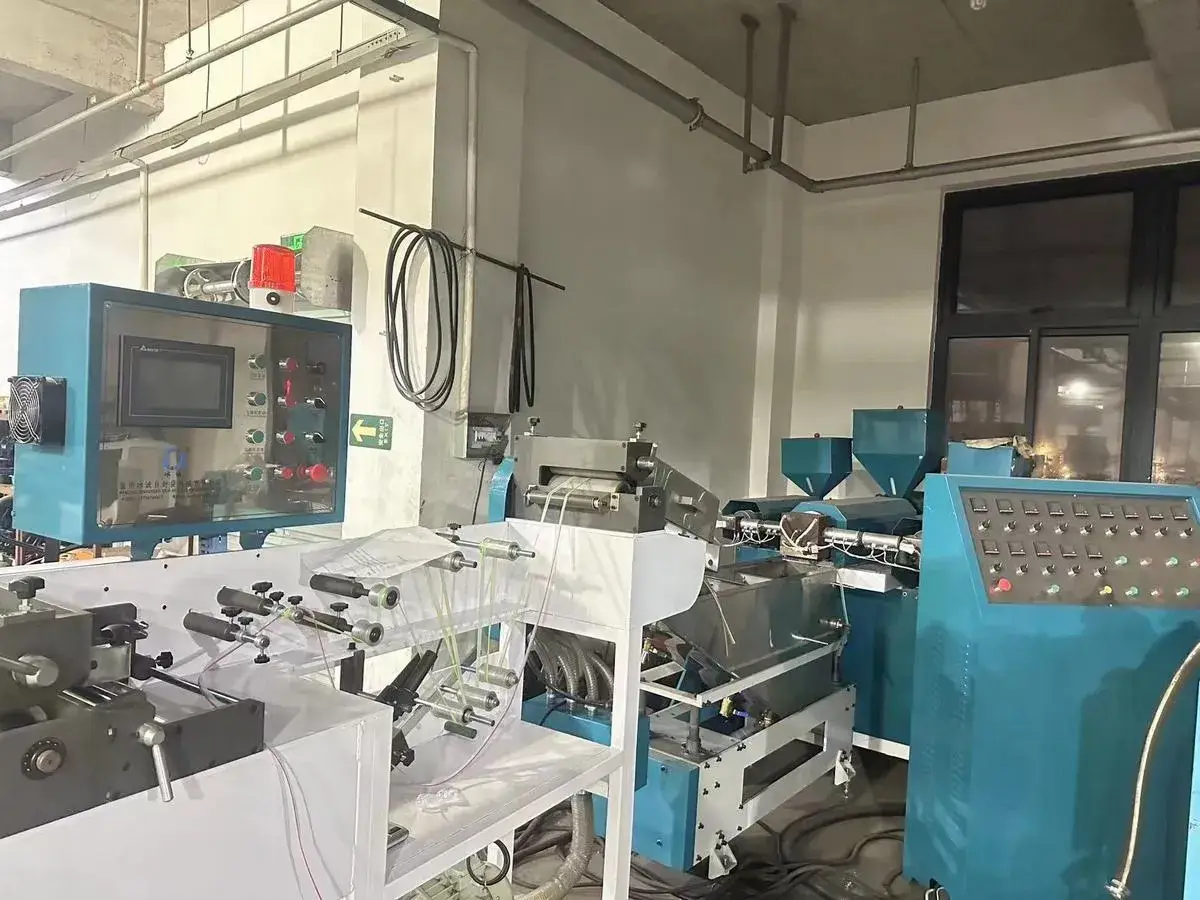

BC-45 Triple Screw Extruder

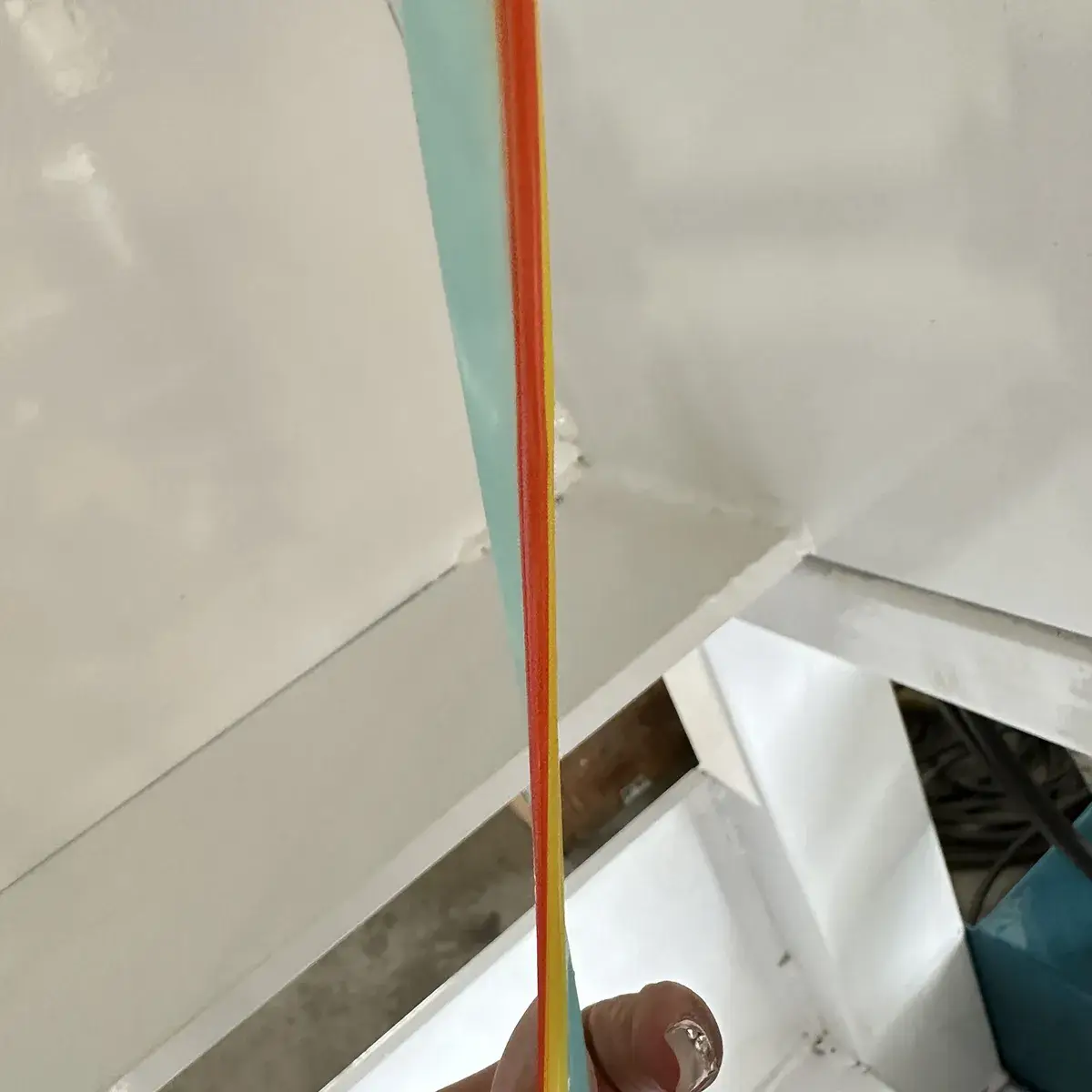

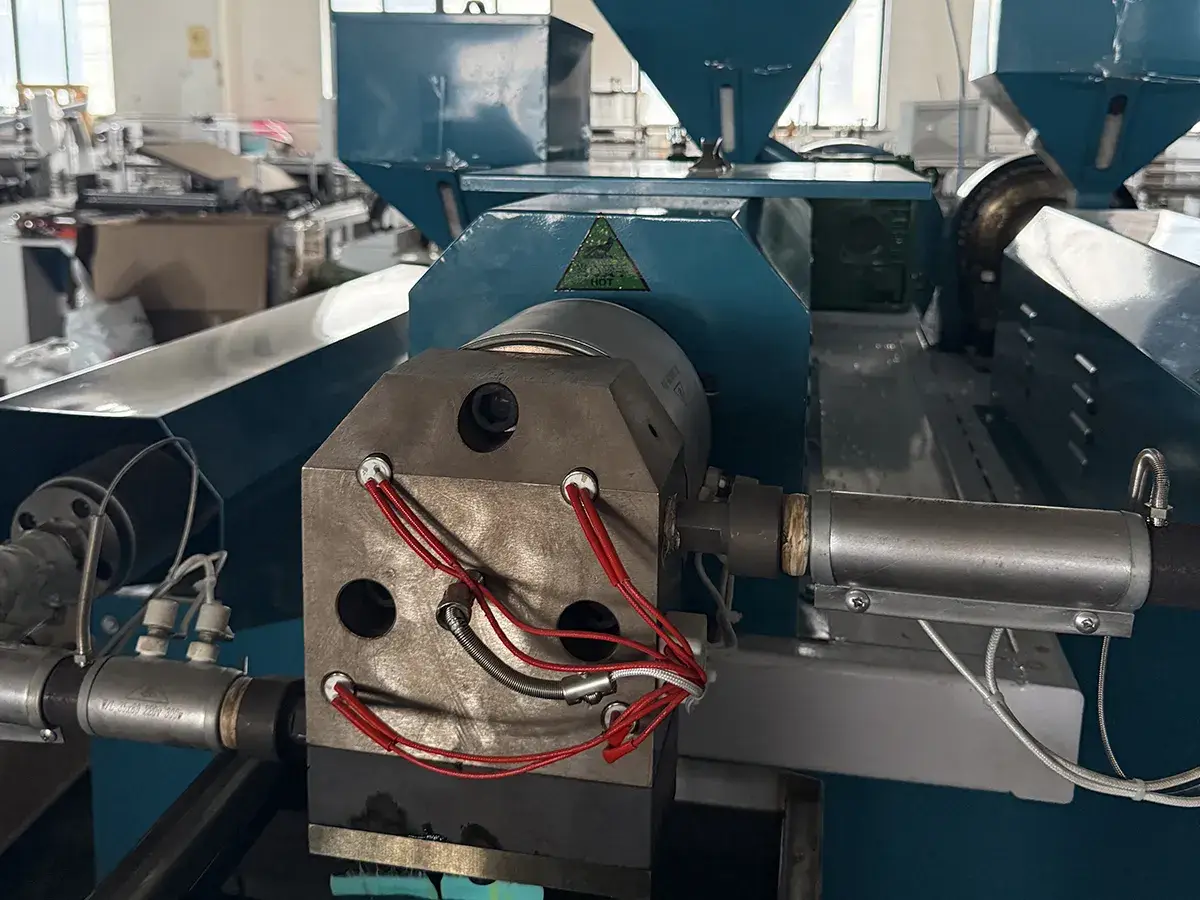

The triple screw extruder represents an advanced solution for the production of complex or multi-colored plastic zipper profiles. This system integrates a multi-screw configuration that enhances the melting and homogenization process. The plastic material is precisely conveyed and pressurized through the extrusion system, resulting in a highly uniform melt delivered to the die head. It is specifically optimized for manufacturers requiring high-performance closures with exceptional dimensional stability.
- Advanced Servo-Driven Control
This multi-screw zipper extruder is equipped with a high-performance Delta servo control system. Combined with a touch-screen interface and an independent temperature control station, it ensures more stable and convenient operation.
- High-Precision Customization

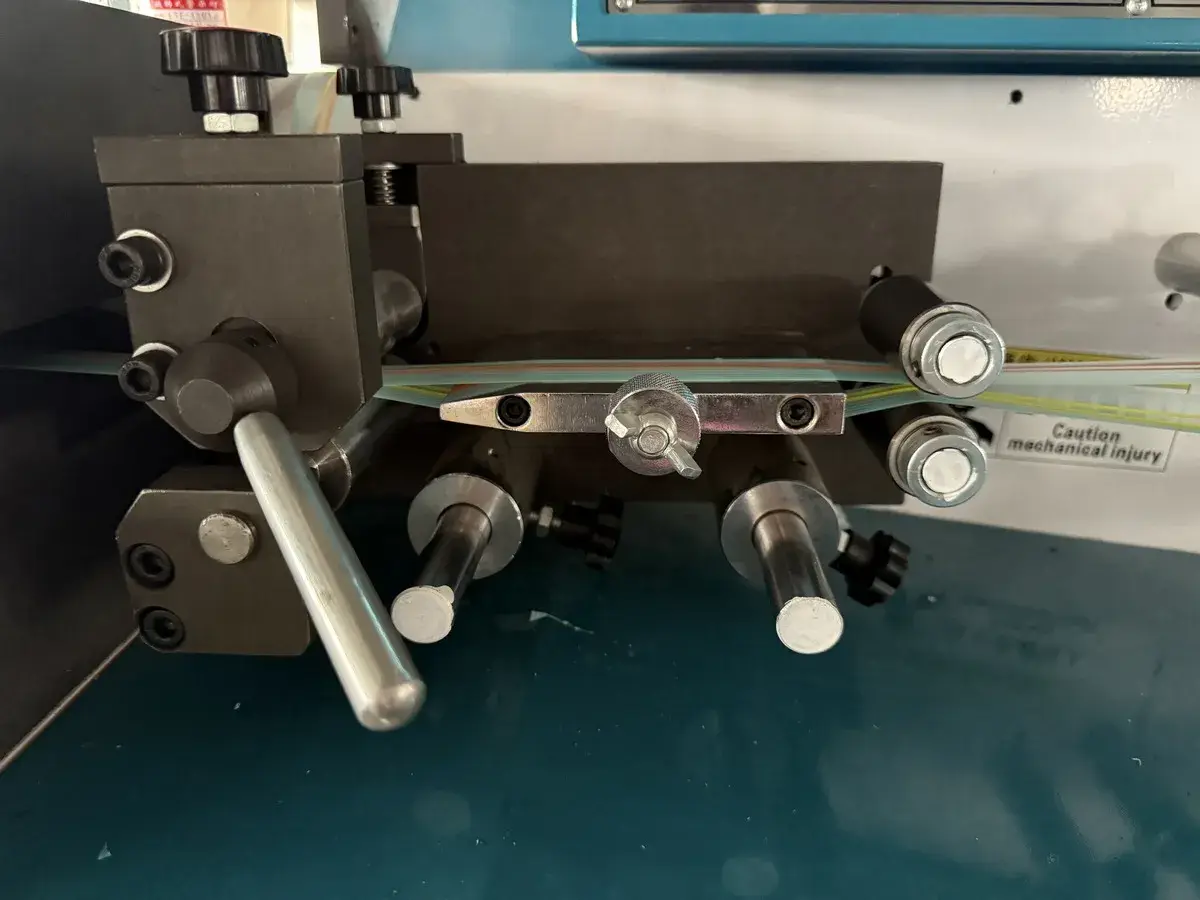

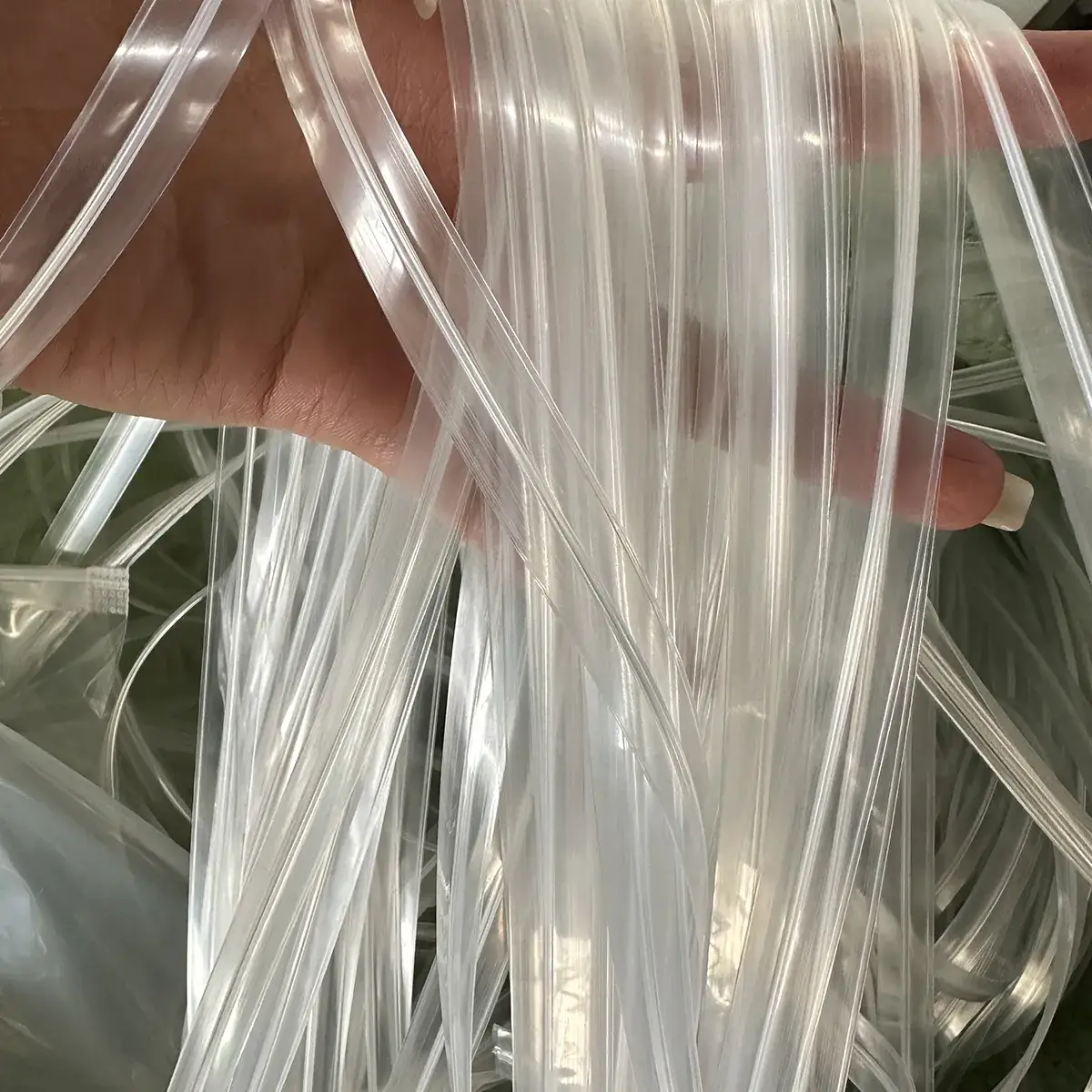

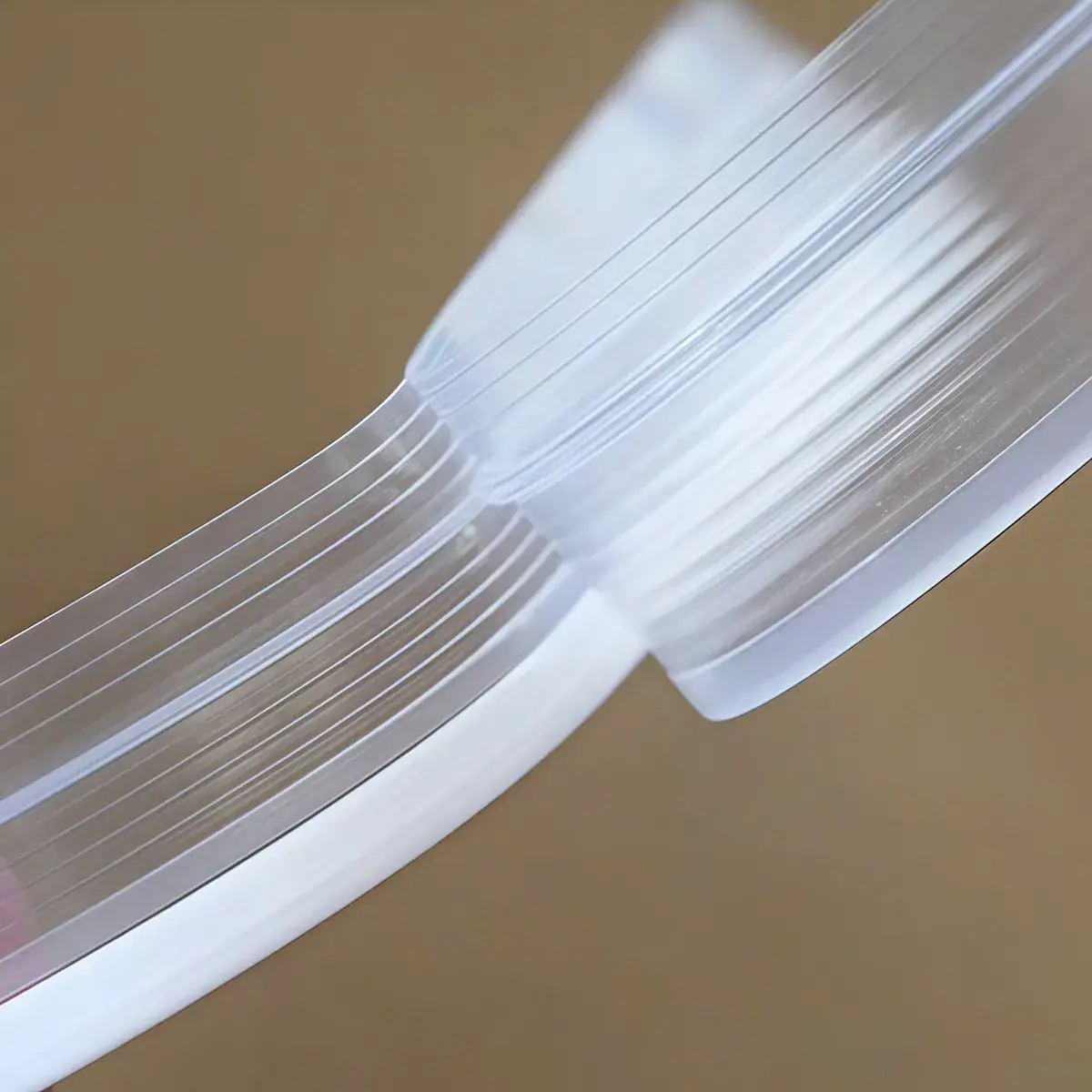

The extrusion line for re-sealable zipper profiles allows for rapid profile changes by switching various precision-engineered dies.
- Efficient Water Tank Management

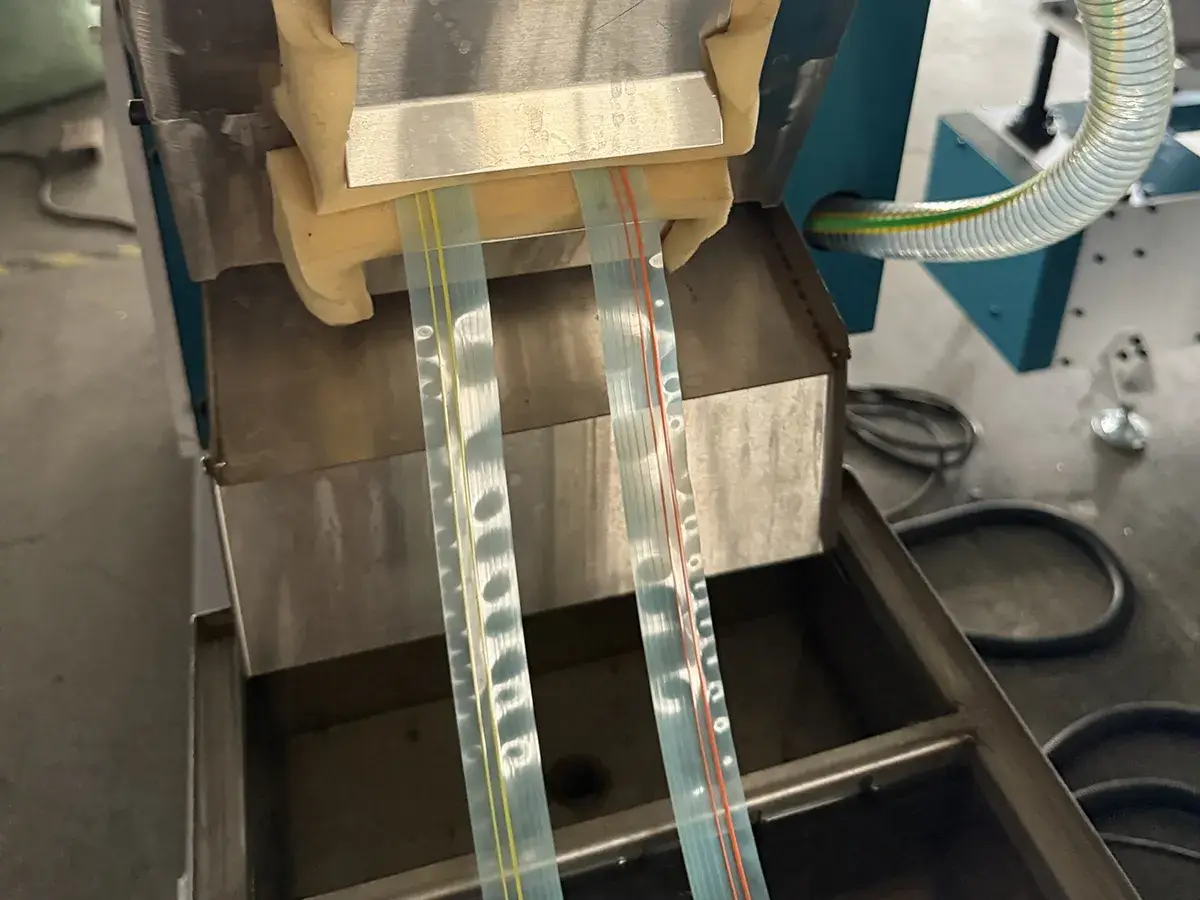

The advanced zipper profile machine features an electric lift-adjustable cooling tank, simplifying the setup process and reducing manual labor during production changes.
| Model | |
| Screw | Φ45mm*1 set+Φ30mm*2 set |
| Speed | 35m/min (depends on zipper type) |
| Main Motor | 7.5kW |
| Auxiliary Motor | 2.2kW*2 set |
| Thermometer | 14 set |
| Total Power | 35kW |
| Dimension (L×W×H) | 6500*1400*2000mm |
| Total Weight | 1800kg |
