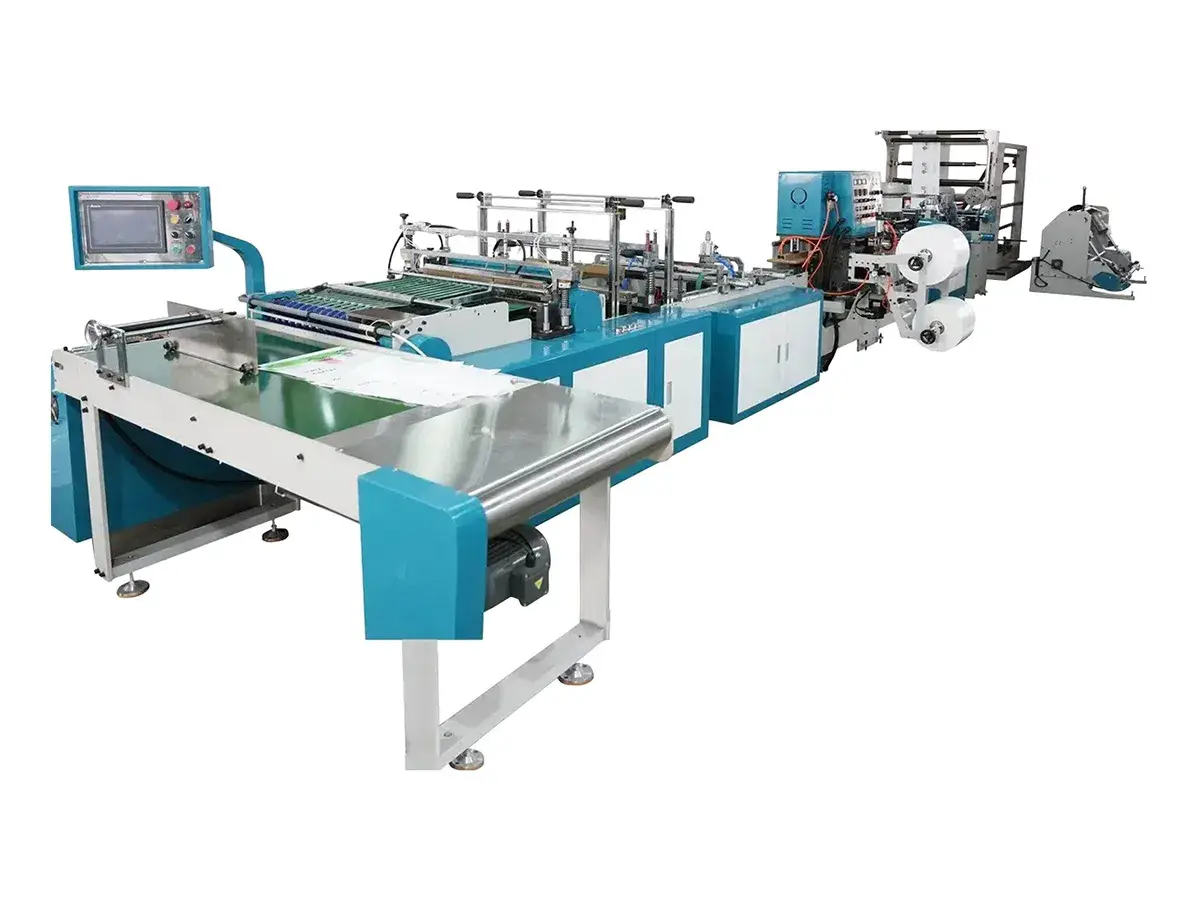

BC-D600 Soft Loop Handle Plastic Bag Machine
The soft loop handle bag making machine is an advanced automated system that integrates handle welding and zipper installation. This zipper bag with handle maker is designed to process various films including LDPP, PE, PP, and HDPE into finished carrier bags featuring both a resealable zipper structure and a welded soft loop handle. This bag equipment provides a comprehensive solution for producing high-durability shopping bags, gift pouches, and boutique packaging.
| Model | |
| Raw Material | LDPP-PE-PP-HDPE |
| Speed | 65-100 pcs/min |
| Bag Width | 100-650mm |
| Bag Length | 260-800mm |
| Film Thickness | 0.05-0.15mm |
| Servo Motor Power | 2kW 2set 1kW 1set 0.75kW 2set |
| Main Motor Power | 1.5kW |
| Auxiliary Engine Power | 0.75kW |
| Discharging Motor Power | 0.75kW |
| Feeding Motor Power | 0.75kW |
| Ultrasonic Power | 2kW |
| Heating Power | 3.8kW |
| Film-fold Motor Power | 0.55kW |
| Cooling Power | 0.55kW; 0.25kW |
| Total Power | 20kW |
| Dimension (L×W×H) | 11000mm*2280mm*1970mm |
| Voltage | 50HZ, 380V |
-
High-Strength Thermal Bonding
The soft loop handle bag machine utilizes a thermal bonding method for zipper attachment. By melting and pressing the zipper profile together with the bag body at high temperatures, it achieves a flatter and more secure bond compared to traditional adhesive or mechanical methods.
-
Intelligent Automatic Protection
This loop handle bag maker is equipped with a sophisticated control system that monitors printing alignment, material supply, and sealing temperatures. The machine automatically senses and shuts down in case of misalignment or shortages, effectively preventing material waste.
